induction melting furnace
power max 2000kw,20000kw , 35000kw max
melting steel ,alloy ,DRI ,copper
|
|
|||||||||
|
Medium frequency induction Melting furnace please tell us if you need 1kv-1950v input voltage. |
|||||||||
|
NO. |
MODEL(melting steel) |
Input |
Input Current A |
Rate Power KW |
Melting rate T/H |
Working |
Working |
Capacity |
Power Consumption |
|
|
|
|
|
|
|
HZ |
V |
Ton |
kw.h/T |
|
1 |
GW-0.01-50/1JJ |
380（6 Pulse ） |
76 |
50 |
0.06 |
1000 |
750 |
0.01 |
850 |
|
2 |
GW-0.03-100/1JJ |
380（6 Pulse ） |
160 |
100 |
0.09 |
1000 |
750 |
0.03 |
850 |
|
3 |
GW-0.05-100/1JJ |
380（6 Pulse ） |
160 |
100 |
0.12 |
1000 |
750 |
0.05 |
800 |
|
4 |
GW-0.08-100/1JJ |
380（6 Pulse ） |
160 |
100 |
0.12 |
1000 |
750 |
0.08/0.1 |
800 |
|
5 |
GW-0.15-100/1JJ |
380（6 Pulse ） |
160 |
100 |
0.15 |
1000 |
750 |
0.15/0.12 |
820 |
|
6 |
GW-0.25-160/1JJ |
380（6 Pulse ） |
256 |
160 |
0.24 |
1000 |
750 |
0.25/0.2 |
790 |
|
6 |
GW-0.3-250/1JJ |
380（6 Pulse ） |
400 |
250 |
0.3 |
1000 |
750 |
0.3 |
770 |
|
7 |
GW-0.5-250/1JJ |
380（6 Pulse ） |
400 |
250 |
0.4 |
1000 |
1500 |
0.5 |
770 |
|
8 |
GW-0.5-250/1J |
380（6 Pulse ） |
400 |
250 |
0.4 |
1000 |
1500 |
0.5 |
770 |
|
8 |
GW-0.5-400/0.8JJ |
380（6 Pulse ） |
|
400 |
|
800 |
1500 |
0.5 |
|
|
9 |
GW-0.75-400/1JJ |
380（6 Pulse ） |
650 |
400 |
0.6 |
1000 |
1500 |
0.75 |
770 |
|
10 |
GW-0.75-400/1J |
380（6 Pulse ） |
650 |
400 |
0.6 |
1000 |
1500 |
0.75 |
770 |
|
11 |
GW-1-500/1JJ |
380（6 Pulse ） |
800 |
500 |
0.8 |
1000 |
1500 |
1 |
750 |
|
12 |
GW-1-750/1JJ |
380/690 |
1200/ |
750 |
0.9 |
1000 |
1500/ |
1 |
720/660 |
|
|
（6 Pulse ） |
700 |
500 |
2600 |
|||||
|
13 |
GW-1-750/1J |
380/690 |
1200/ |
750 |
0.9 |
1000 |
1500/ |
1 |
720/660 |
|
|
（6 Pulse ） |
700 |
500 |
2600 |
|||||
|
14 |
GW-1.5-1000/0.5JJ |
690（6 Pulse ） |
912 |
1000 |
1.2 |
500 |
2600 |
1.5 |
700 |
|
15 |
GW-1.5-1000/0.5J |
690（6 Pulse ） |
912 |
1000 |
1.2 |
500 |
2600 |
1.5 |
700 |
|
16 |
GW-2-1500/0.5JJ |
690（6 Pulse ） |
1360 |
1500 |
1.7 |
500 |
2600 |
2 |
675 |
|
17 |
GW-2-1500/0.5J |
690（6 Pulse ） |
1360 |
1500 |
1.7 |
500 |
2600 |
2 |
675 |
|
18 |
GW-2-2000/0.5JJ |
690（6 Pulse ） |
1400 |
2000 |
1.9 |
500 |
2600 |
2 |
650 |
|
18b |
GW-2-2000/0.5J |
690（6 Pulse ） |
1400 |
2000 |
1.9 |
500 |
2600 |
2 |
650 |
|
19 |
GW-3-2500/0.5JJ |
690/1000 |
2275/ |
2500 |
2.56 |
500 |
2600/ |
3 |
590-640 |
|
|
（6 Pulse ） |
1700 |
3200 |
||||||
|
20 |
GW-3-2500/0.5J |
690/1000 |
2275/ |
2500 |
2.56 |
500 |
2600/ |
3 |
590-640 |
|
|
（6 Pulse ） |
1700 |
3200 |
||||||
|
21 |
GW-4-3000/0.5J |
690/1000 |
2730/ |
3000 |
3.2 |
500 |
2600/ |
4 |
590-640 |
|
|
（6 Pulse ） |
2040 |
3200 |
||||||
|
22 |
GW-5-4000/0.5JJ |
1000 |
2300/ |
4000 |
4.5 |
500 |
2600/ |
5 |
570-630 |
|
|
（12 Pulse ） |
2700 |
|
3200 |
|||||
|
23 |
GW-5-4000/0.5J |
1000（12Pulse ） |
2300 |
4000 |
5 |
500 |
3400 |
5 |
570-630 |
|
24 |
GW-6-4000/0.5J |
1000（12 Pulse） |
2300 |
4000 |
5 |
500 |
3400 |
6 |
570-630 |
|
25 |
GW-8-5000/0.5J |
1000（12 Pulse） |
3400 |
5000 |
7~8 |
500 |
3400 |
8 |
570-630 |
|
26 |
GW-10-6000/0.5J |
1000（12 Pulse） |
3750 |
6000 |
9-10 |
500 |
3400 |
10 |
570-630 |
|
28 |
GW-12-8000/0.25J |
1000（12 Pulse） |
4900 |
8000 |
10-11 |
250 |
3400 |
12 |
570-630 |
|
30 |
GW-15-10000/0.25J |
1500（24 Pulse) |
6500 |
10000 |
13~14 |
250 |
3400 |
15 |
550-600 |
|
31 |
GW-18-12000/0.25J |
1500(24Pulse) |
8160 |
12000 |
14-16 |
250 |
3400 |
18 |
550-600 |
|
32 |
GW-20-12000/0.25J |
1500（24 Pulse) |
8160 |
12000 |
16-18 |
250 |
3400 |
20 |
550-600 |
|
33 |
GW-25-14000/0.25J |
1500(24 Pulse) |
9460 |
14000 |
18-20 |
150~200 |
3400 |
25 |
550-600 |
|
34 |
GW-30-16000/0.2J |
1750（24 Pulse) |
10850 |
16000 |
20-22 |
150~200 |
3400 |
30 |
550-600 |
|
35 |
GW-40-18000/0.2J |
1750(24 Pulse) |
12240 |
18000 |
24-26 |
150~200 |
3400 |
40 |
550-600 |
|
36 |
GW-50-20000/0.2J |
1750(24Pulse) |
14932 |
20000 |
30-33 |
150-200 |
3400 |
50 |
550-600 |
|
37 |
GW-60-22000/0.15J |
1-1950KV |
|
|
|
|
|
|
|
|
|
GW-80-30000/0.15J |
1-1950KV |
|
|
|
|
|
|
|
|
Model Note： |
|
|
|
|
|
|
|
||
|
1.）GW-Medium frequency induction melting furnace ，-1(1ton)，-500(500KW)，/1(1000HZ)，/0.5—(500HZ) |
|||||||||
|
-J(Steel frame furnace body and hydraulic tilting device，-JJ(Aluminum Alloy frame with gearbox tilting device and motor drive 。 |
|||||||||
|
2.）Above is standard quotation ，Extra equipment will do not include : Furnace Switch、Furnace cover、furnace firestone,firestone maker machine,cooling tower,transformer |
|||||||||
|
3.）Management Installation : ACCOMMODATION AND TRANSPORTATION COSTS will be paid by buyer， buyer will be paid 150USD /days per engineer,we support Erection, testing and commissioning, and also training . |
|||||||||
|
4.) Guarantee: 1 year after shipment,Expiration: 25 days after date of quotation |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Furnace main Scope list : |
|
|
|
||||||
|

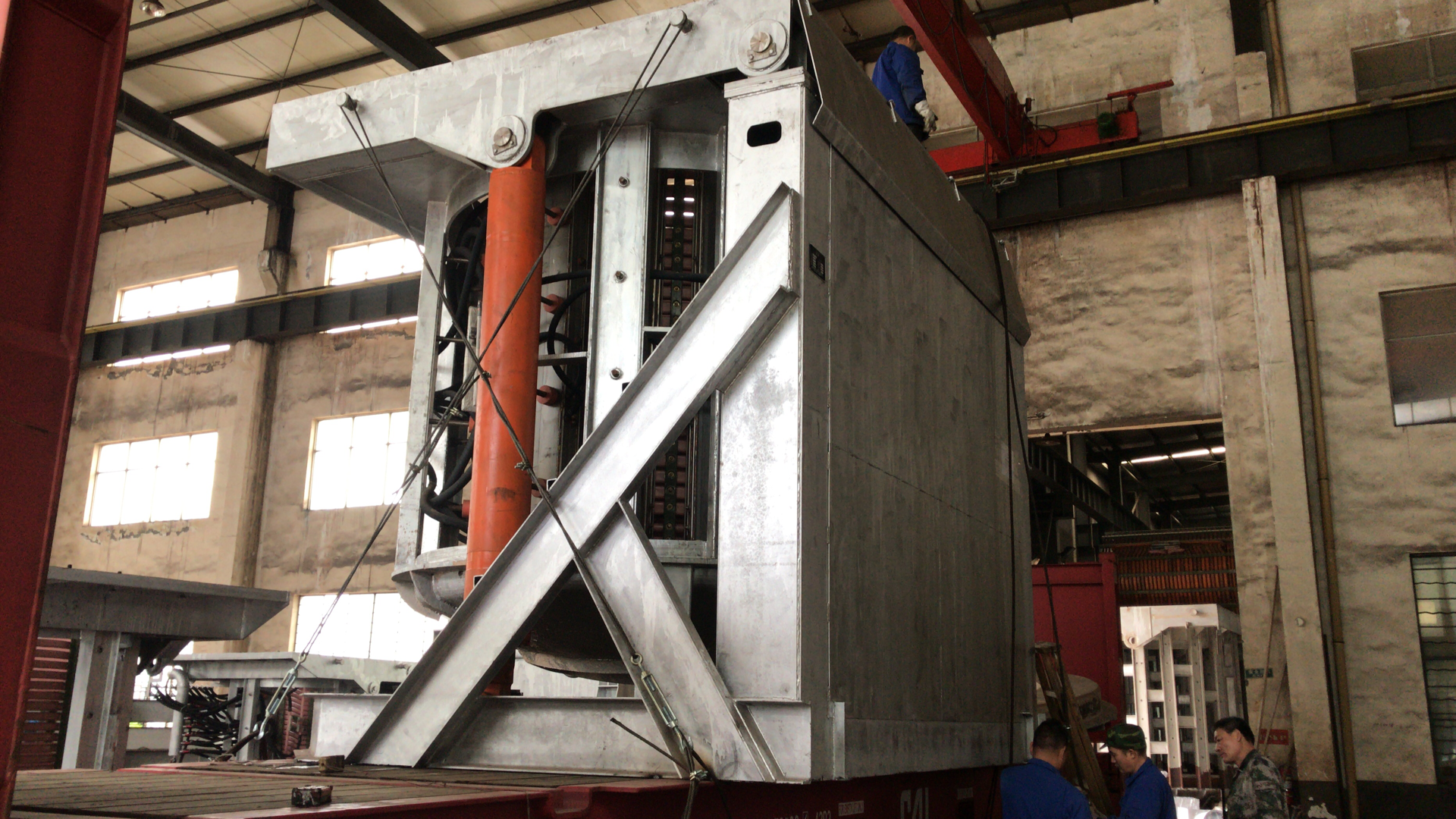

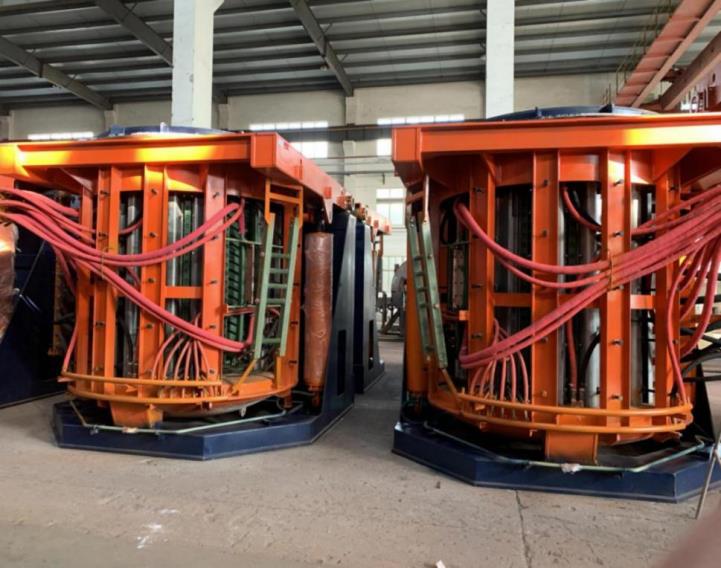

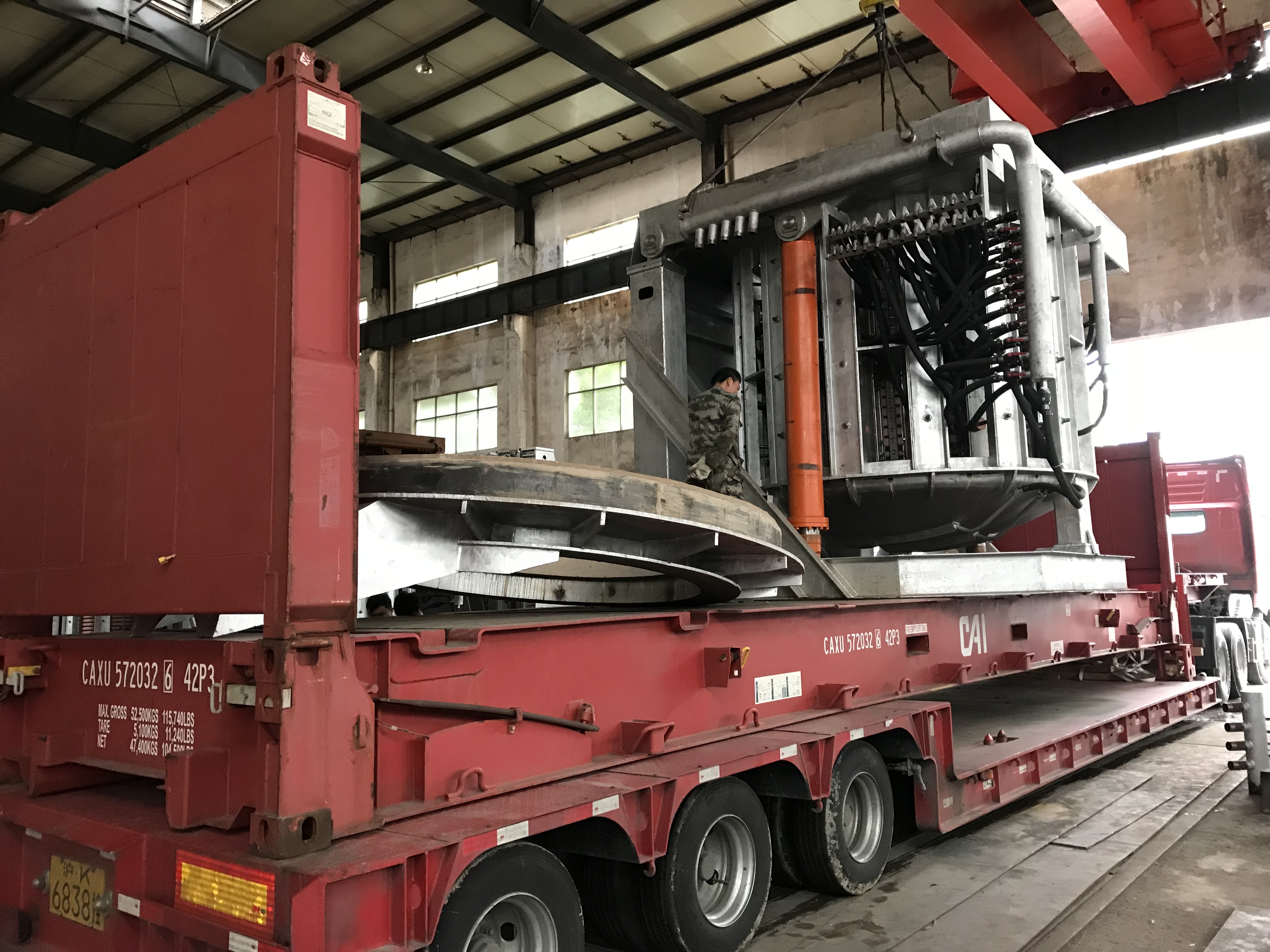

1. Furnace body………………………..…………2pcs |
|
|
|
||||||
|
2. Medium frequency power supply…………….…1pc |
|
|
|
||||||
|
3. Water cooling cable………………………...…4pcs |
|
|
|
||||||
|
4. Power supply………….…1pc-6pulse, 2pcs-12pulse, 4pcs-24pulse |
|
|
|
||||||
|

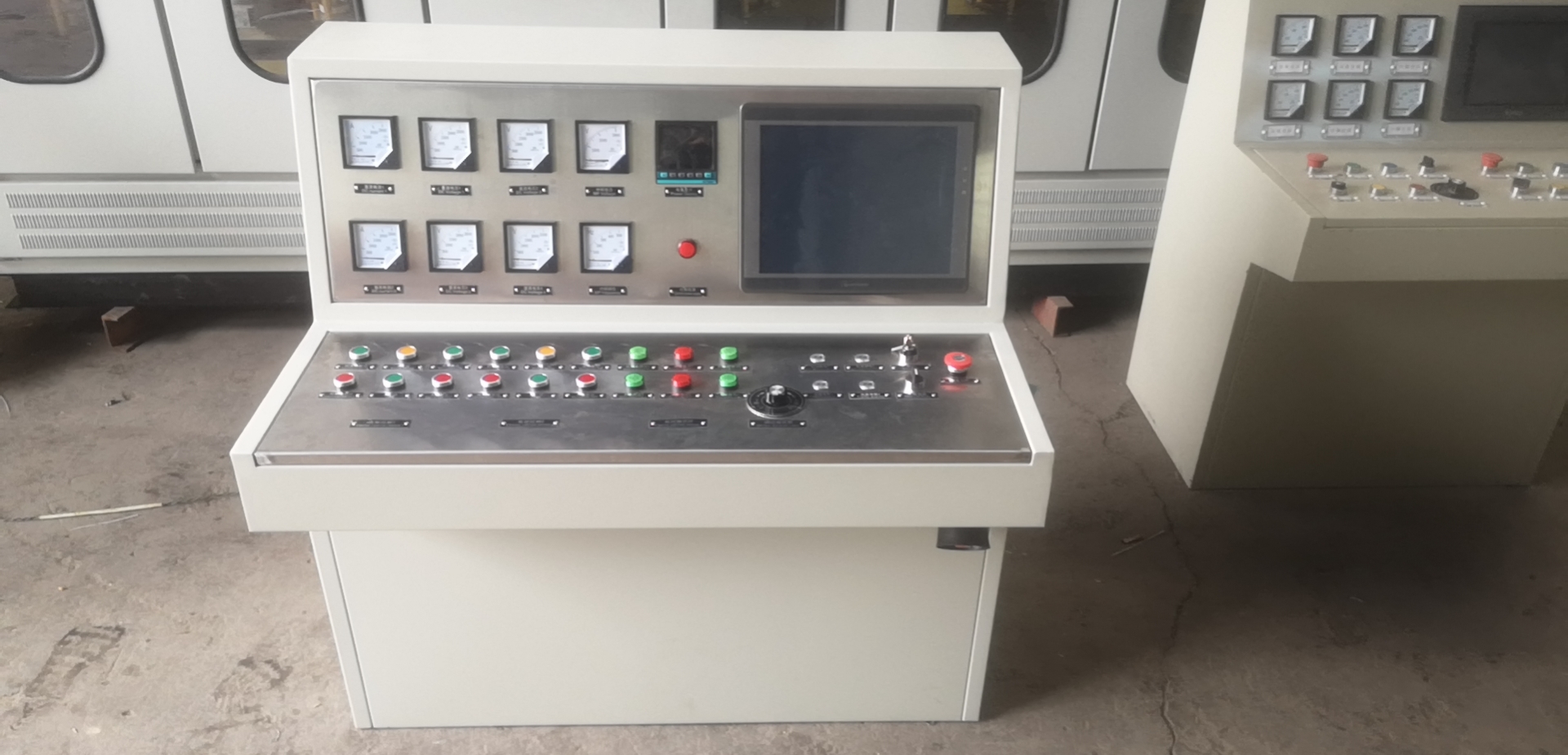

5. Low power cabinet……1pc-6pulse, 2pcs-12pulse, 4pcs-24pulse |
|
|
|
||||||
|
5. Capacitor bank………………………………..1pc |
|
|
|
||||||
|
6.Copper bubar or water cooling cable ------1set |
|
|
|
||||||
|

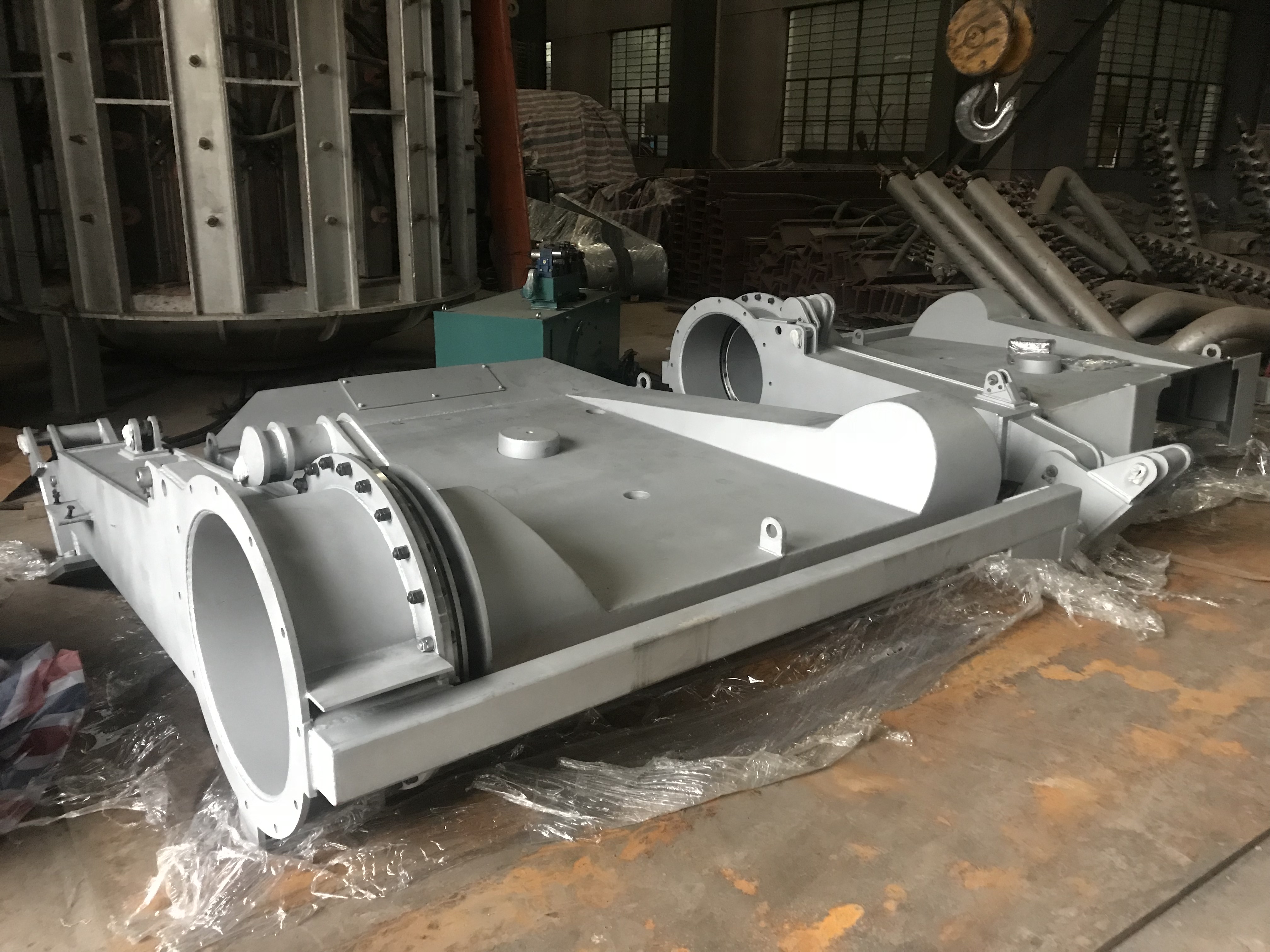

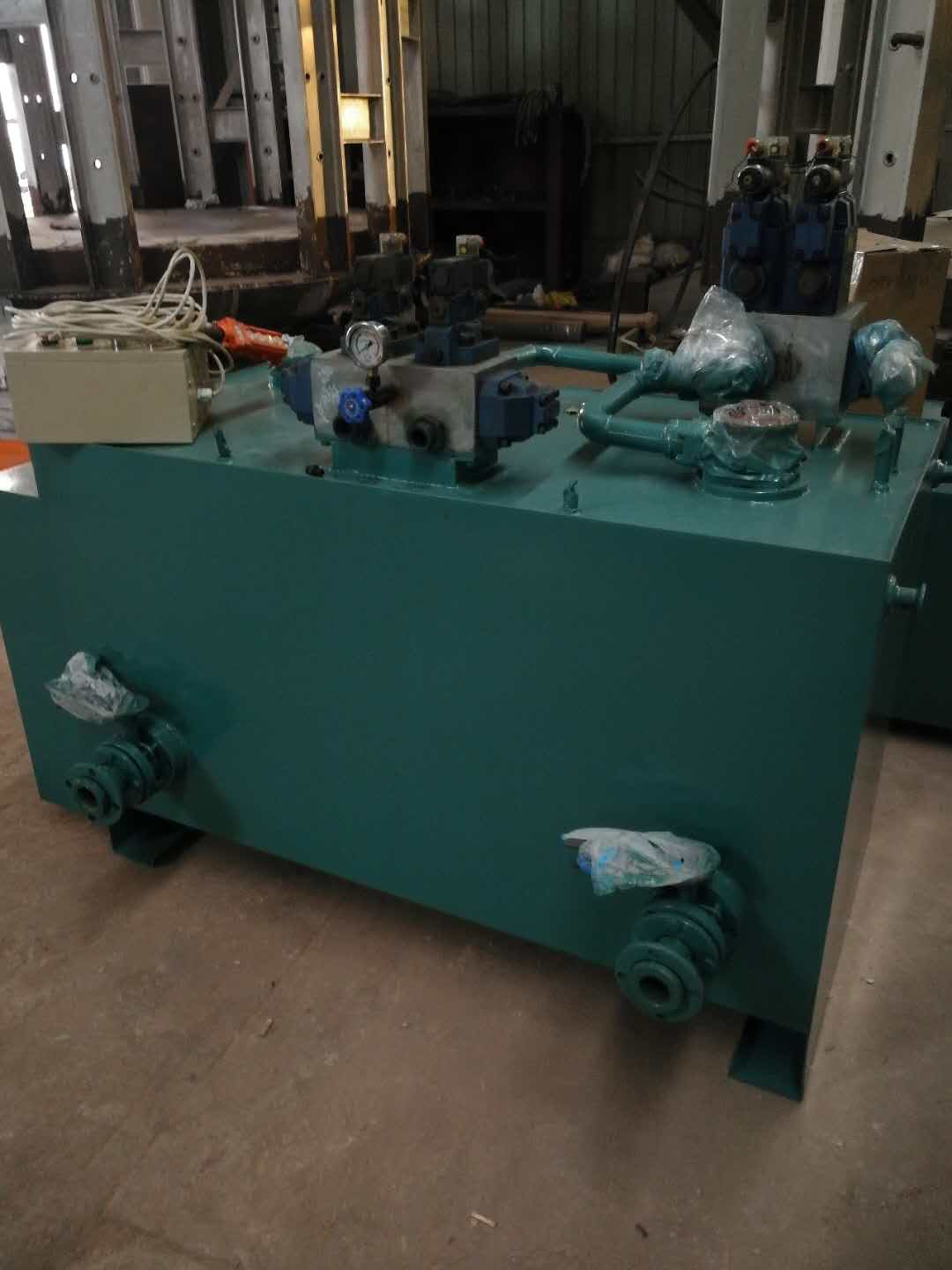

6. Hydraulic Tilting device or Machinery Tilting device …2set |
|
|
|
||||||
|
7. Water temperature and pressure announciator….1set only for big ton furnace |
|
|
|
||||||
|
8. Furnace lining leakage alarm…………..………1pc only for big ton furnace |
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
