Home    Continuous casting machine    R6m 2strands billets CCM

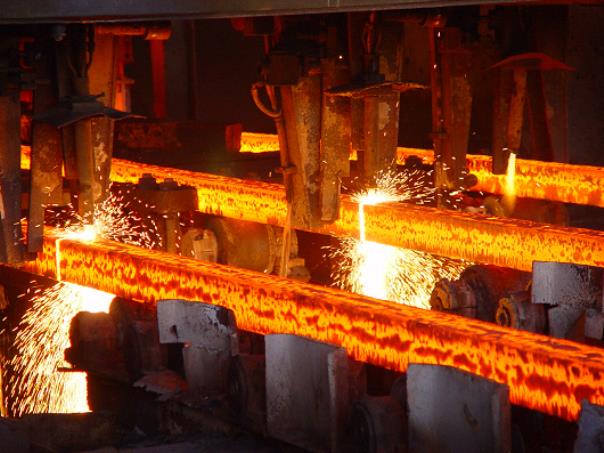

R6m2strandsbilletsCCM

R6m 2strands billets CCM

Electrical system: SIEMENS/DELTA Transducer, SIEMENS/DELTA PLC, SCHNEIDER contactor . PLC automatic controlling
Billet specification: 100*100,125*125,130*130, 150*150mm
Strand number: strands 2 strands
Dummy bar: rigid dummy bar
Ladle support: Ladle Rotor Tower/Ladle moving car

R6m, 2strands, 6-12meter billets

Design according ITALY technology,Italy CCM OEM factory.

Biggest CCM factory with 1000worker 30 years in china.

                                                                NO: R62T12



Design according ITALY technology,Italy CCM OEM factory.

 R9 meter 2 strdans Iran project ,Accept KUNLUN bank payment.

We have many other R8m R6 meter ,R4 meter CCM project in iran .

We also have 20ton furnace, 30ton ,50tonfurnace,5ton furnace project in iran

continuous%20casting%20machine%20连铸机



. Technical data

1.       CCM

Casting radius: R6m

Billet specification: 100*100,125*125,130*130, 150*150mm

Strand number: strands 2 strands

Dummy bar: rigid dummy bar

Ladle support: Ladle Rotor Tower/Ladle moving car

Cutting way: automatic hydraulic cutting machines/Flame cutting machine

Electrical system: SIEMENS/DELTA Transducer, SIEMENS/DELTA PLC, SCHNEIDER contactors . PLC automatic controlling

Steel grader Q215,Q235,20MnSi,45# and so on or CK45, CK60, MO 40, ST 32 and ST 55.

Billets Size: 6-12m

Pusher-type: hydraulic pressure system ,Mechanical car type.

2. Water system

a. Mould cooling water

Influent pressure: P0.9Mpfa

Influent temperature: 35

Influent effluent temperature difference: 6-10

PH:7.5-9

Water total hardness: 150mg/L

Flow: 240Nm3/h



b. Secondary cooling water



Hydraulic: P0.6Mpa

Impurity particle size: 0.2mm

Flow: 80Nm3/h



c. Machinery cooling water

Hydraulic: P0.6MPa

Impurity particle size: 0.5mm

Flow: 40Nm3/h



3. Gas System



a.       Oxygen

Pressure: P0.9Mpa

Purity: 99.5%

Flow: 4Nm3/min



b.       Gas

Pressure: P 0.3MPa

Combustion value: 93700KJ/m3

Flow: 1.5Nm3/min



c.       Compressed air

Pressure: P 0.5MPa

Flow: Q5Nm3/min



Withdrawal straightening machine

Power: 11KW/set

Rated revolution: 1500/min

Billet withdrawing force(max): 11000N

Straightening force (max): 220000N

Tension speed range: 0.3-3.0m/min

Dummy bar speed (max): 3.99m/min



4. Central hydraulic station

System pressure: P8.0MPa

System flow: Q=37.5L/min





. Supply cope

1. On-line equipment list

No

Equipment name

Unit

Qty.

Remark

1

Ladle Rotor Tower 钢包回转台 Or Ladle moving car 13000USD/Set (operational)Tundish%20car



set

1























2











45000USD/set

Double arm 100ton support each



















26000USD

2

Tundish moving car 15000USD/set

PCS

2

30000USD

3

Tundish 4600USD/set

PCS

2

9200USD

4

130sq.mm Or

150X150MM 5500USD/set

PCS

2

11000USD

5

Mould cover 400USD/set

SETS

2

800USD

6

Oscillation device(completed leaf )30000USD/set

振动台2

Oscillation device( Half Leaf) (operational)  15000USD/st

Half%20leaf%20Spring%20oscillatin

SETS

2

60000USD

Complete leaf spring oscillation table( Advance technology,almost no wear and tear ,long working time,top quality)

Main parameter

Oscillation frequency: 10~280/min

Amplitude: 2.5~6 mm







30000USD

7

Secondary cooling manifold (stainless steel) and support 1500USD/set

SETS

2

3000USD

8

Guide section for secondary cooling7000USD/set

SETS

2

14000USD/set

9

Cutting Machine21000USD/set

SET

2

42000USD

10

Withdrawal straightening machine51000USD/set23C39DB7E7C12D7153A0F651C22825F4

SETS

2

102000USD

11

Dummy bar

PCS

2



2setsx 6200USD

=12400USD

12

100sq or150sq Dummy head and transition head

SETS

2

13

Dummy bar guide wheel

SETS

2

14

Dummy bar storage device

SETS

2

2sets x 6000USD

=12000USD

15

Dummy bar heat protetion cover

PCS

2

16

Roller table before cutting 6200USD/set

Group

2

12400USD

17

Transmit roller table 15000USD/set

Group

2

30000USD

18

Discharge roller table 14500USD/set

Group

2

29000USD

19

Transverse pusher11000USD/set

SET

1

11000USD

20

Cooling bed 20000USD/set

SET

1

Machinery Moving car

21

Overflow chute 400USD/set

PCS

4

 1600USD

22

Hydraulic station system 20000USD

SET

1

20000USD

23

Cooling water distribution system 10000USD/set

SETS

2

20000USD/set

24

Electrical system50000USD/set

SETS

1

50000USD/set

a

Power supply conbinet

SET

1



b

Frequency conbinet

SETS

2



c

PCL conbinet

SET

1



d

Main operating table

SET

1



e

Suspension operating box

SETS

2



f

Small operating box

SETS

2



27

Steel construction platform

Batch

1

750000USD

a

Main operating platform







b

Temperature test platform







c

Dummy bar storage platform





























2Auxiliary equipment

No.

Equipment name

Unit

Qty.

Remark

1

Water pipe, connector valve .etc

Batch

1

20000USD(For CCM self connection(not for equipment connection.)

2

Various cable,tube.etc

Batch

1





















5

Level control system 30000USD/set (Operational)

Sets

2

Red ray type

6

Electromagnetic mixing 35000USD/set(Operational)

sets

2



Auxiliary equipment (operational)

No.

Equipment name

Unit

Qty.

Remark

1

Mould maintenance and pressure test bench

set

1

3500USD

2

Drainage gun

pc

1

250USD

3

Cutting gun

pc

1

250USD

4

Ladle heater

set

1

25000 USD



Following is Discount price:



2.       Lead time: 120 days

4. Term of payment: 40% advance payment by T/T, 60% balance payment by T/T before date of shipment

5. Customer service: All the costs of sellers experts go and work at abroad for return air tickets, accommodation and meals, will be borne by the buyer. The buyer shall compensate the experts at USD 150 per engineer per day for debugging period. After normal operation the seller should be responsible to guarantee repair or change of the faulty components in 6 months, such as master control board, reactor, compensate capacitor, hydraulic device, breaker, and furnace shell (except for lining break through, stoppage or shortage of cooling water supply for components).



Delivery by 1 piece 40FR frame container, 2piece 40HQ container,5 pieces 40GP container+bulk for ladle rotor tower.
