Home    Rolling mill    500 Thousand wire rod rolling mill
500Thousandwirerodrollingmill

500 Thousand wire rod rolling mill

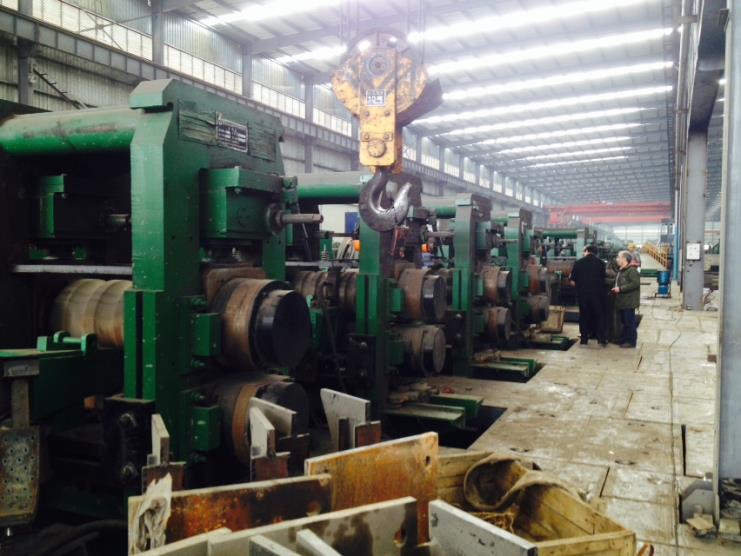

ROLLING MILL
bilelts 150*150x6m*12m finished product
rebar :φ8-φ32, 5.5-14mm wire rod maximum speed: 90m/s,
annual output: rebar 500 000tons/year ,wire rod 250000-400000ton/year

ROLLING MILL

bilelts 150*150x6m*12m finished product
rebar :φ8-φ32, 5.5-14mm wire rod maximum speed: 90m/s,
annual output: rebar 500 000tons/year ,wire rod 250000-400000ton/year

IMG_4845IMG_4856

TO:





Via



By L/C

No.



Unit

Qty

U.Weight

T. Weight

Unit Price

Total Price

Note



(T)

(T)

(USD)

(USD)

One.

Mechanical equipment before and after heating furnace















1.00

Feeding table

set

1

18.00

18.00







2.00

Feed roller

group

4

8.00

32.00







3.00

Hydraulic push machine

set

1

21.00

21.00







4.00

Tapping machine

set

1

23.00

23.00





Belt traversing

5.00

Roughing front the roller (including steel roller tick)

set

1

13.00

13.00

















107.00







Two.

Rolling area mechanical part (Morgan mill)















A

roughing rolling area















1.00

Φ550 Two roller mill (1H3H)

set

2

31.32

62.64





With closed traverse, Morgan model, capable of quickly changing roller type drums containing the cardan shaft and the bracket.

2.00

Φ550 Two roller mill (2V4V)

set

2

30.32

60.64





same as above

3.00

Φ550 Independent guide seat

set

8

0.60

4.80







4.00

Φ450 Two roller mill (5H7H)

set

2

24.50

49.00





same as above

5.00

Φ450 Two roller mill (6V8V)

set

2

25.00

50.00





same as above

6.00

Φ450 Independent guide seat

set

8

0.50

4.00







B

 middle rolling area















1.00

Φ350 Two roller mill (9H11H)

set

2

12.10

24.20





same as above

2.00

Φ350 Two roller mill (10V12V)

set

2

13.30

26.60





same as above

3.00

Φ350 Independent guide seat

set

8

0.40

3.20







C

finished rolling area















1.00

Φ350 Two roller mill (13H,15-18H)

set

5

12.10

60.50





same as above and include Guide bearing beam

2.00

Φ350 Two roller mill (14V)

set

1

13.30

13.30





same as above and include Guide bearing beam











358.88







Three.

Drum type universal shaft













Gear material: 20CrNi2MoA (carburizing, quenching, grinding teeth)

1.00

Φ550 Drum type universal shaft

pcs

8

2.19

17.52





2.00

Φ450 Drum type universal shaft

pcs

8

1.65

13.20





3.00

Φ350 Drum type universal shaft

pcs

20

1.10

22.00















52.72







Four.

Hardened reducer













Gear material: 20CrNi2MoA (carburizing, quenching, grinding teeth)

1.00

φ550 Composite reducer (1H3H)

set

2

22.10

44.20





2.00

φ550 Composite reducer(2V4V)

set

2

22.64

45.28





3.00

φ450 Composite reducer(5H7H)

set

2

12.30

24.60





4.00

φ450 Composite reducer (6V8V)

set

2

16.70

33.40





5.00

φ350 Composite reducer(9H11H)

set

2

6.60

13.20





6.00

φ350 Composite reducer (10V12V)

set

2

9.80

19.60





7.00

φ350 Composite reducer(13H,15-18H)

set

5

4.70

23.50





8.00

φ350 Composite reducer (14V)

set

1

9.00

9.00





9.00

Gear coupling of motor and reducer

set

18

0.30

5.40















218.18







Five. A

Billest Heating furnace and auxiliary equipment

set

1

1100.00

1100.00







Five. B

cooling bed and parts















1.00

Apron roller and roller mechanism before empty

group

1

17.03

17.03







2.00

 walking beam cooler (12.5mX78m)

m

78

5.70

444.60





With each row of steel roller, chain, steel moving car, under the bed rollgang

3.00

Shear front roller

m

6

0.72

4.30





4.00

After cutting roller

m

24

0.72

17.21





5.00

Fixed length baffle

set

3

0.70

2.10





6.00

Segment table

m

24

0.72

17.21





7.00

Pinto steel moving machine

set

1

7.72

7.72





8.00

Fine whole transfer chain

set

1

15.74

15.74





9.00

Collection device

set

1

25.40

25.40





10.00

Pneumatic damper

set

2

1.90

3.80





11.00

Bundling roller

set

1

6.24

6.24







12.00

Pre forming device

set

6

1.51

9.07







13.00

Weighing roller

set

1

4.00

4.00







14.00

A bundle of collecting segmented roller

set

1

6.40

6.40







15.00

Bundled collection chain

set

1

12.30

12.30







16.00

Short ruler material collecting device

set

1

6.75

6.75







17.00

Fixed baffle

set

3

0.60

1.80







18.00

Main motor base

set

18

1.15

20.70

















622.37







SIX.

Wire rod line

















Block mill

set

1













Air-cooled transport line

set

1













Fan

station

6













Wind enclosure

set

6













Set station

set

1













Rolling trolley

set

1













PF transport aircraft

set

1













Coiled scale

station

1













Unloading station

station

2













Rolling hydraulic station

set

2













Unloader and coil scale hydraulic station

set

1













Automatic baler

station

1



















sub totally









sevne

other















1.00

Hydraulic skirt plate mechanism (78m+52m)

m

130

0.84

109.20







2.00

Online guide

set

1











3.00

TMT quencying equipment

set

1











4.00

Machine automatic packing machine

set

5











5.00

1# crank flying shear

set

1











6.00

2# rotary flying shear

set

1











7.00

3# flying shear

set

1











8.00

850 tons cold shear

set

1











9.00

Hydraulic pressure station

set

1











10.00

Hydraulic station of rolling mill

set

1











11.00

The cooling bed hydraulic station

set

1











12.00

Hydraulic power station

set

1











13.00

XYZ-630 thin oil lubrication station

set

3











14.00

Main motor, DC motor

set

21











15.00

High voltage switch, transformer, electric automation control

set

1











16.00

Water supply and drainage equipment

set

1











17.00

10m³ Screw type air compressor

set

2









Equipped with freezer dryer, precision filter, 1 2m3 gas storage tanks, 2 1m3 storage tanks

18.00

Workshop all kinds of pipes, water pipes

set

1











19.00

Hydraulic, lubrication line

set

1









include acid pickling

20.00

Copper wire, cable, wire

set

1































rebar and wire rod totally













FOB
china port



shipping charges

unit

1













installing,testing,training employees

















food ,transporation ,air tickets, living ,Protective clothinginsurance

















Design cost

















Turnkey with hot commissioning totally













    by L/C

Seven.

User prepareing















1.00

water ,gas equipments

set

1











2.00

Workshop, construction, foundation

 m2

14000









include Anchor bolt embedded plate

3.00

Safety railing, aisle, plank etc.

set







4.00

Workshop lighting

set







5.00

Crane

set

5













Totally with workshop building turnkey













    by L/C
