YR (YRKK, YRKS) high voltage motor

YR (YRKK, YRKS) high voltage motor


Output Power 100-10000kw 10mw-50mw

Frame: 355-2530

Pole number:2-12


Frequency:50 and 60hz

Protection level: IP44, IP54

Cooling method:IC611

Motor model: YR (YRKK, YRKS)

Standard: IEC, DNV, GB

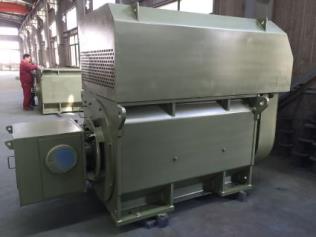

IMG_5036 - 副本


YR (YRKK, YRKS) series 6kv, 10kv high-voltage three-phase asynchronous motor is a winding type (slip ring) three-phase asynchronous motor with closed air-water cooler. The protection grade of the motor is IP44 or IP54 (see GB / T4942.1), and the cooling method is IC81W (GB / T1993). The motor has the advantages of high load rotational inertia, high efficiency, energy saving, low noise, low vibration, reliable performance, convenient installation and maintenance, etc. This series of motors can be used to drive various machines. Such as ventilator, compressor, water pump, crusher, cutting machine tool and other equipment, and can be used as the prime mover of coal mine, machinery industry, power plant and various industrial and mining enterprises
